| Quantity: | |
|---|---|
300/600/1200/2400/4800/9600T
SXG
02
| Products Code | Filament Diameter (um ) | Linear Density ( Tex ) | Compatible Resin | Product Features and Application |
| EW150/150H | 13-35 | 300、600、12002400、4800、 9600 | UP VE | Fast and complete wet out in resinsLow catenary Lonw fuzx Excellent mechanical propertyUsed foe making fRp pipe .Chemical Storege Tank |
| EW280280H | 13-17 | 1000.1200、2400 | UP VE | Fast and complete wet-out in resinLow catenary Low fuzzExcellent mechanical propertyUsed for making High Pre$surePipe,Pressure Vessel |
| EW256/256H | 13-24 | 600、 1200、2400、4800 、9600 | EP | Fast wet-@utEccellent Abrasson ResistanceExoellent Electric PerformanceUsed for making |
| EW286 | 13-24 | 1100、1200.2000、2400 | EP | Fast and complete wet·out in resinsLow catemary Low fuzz Excellent mnechanical propertyMainly be used to make the highpressure pipe and wessel |
01.Filament Winding Process
Continuous filament winding process is that the steel bandmoves in back - and - forth circulation motion. The Fiberglasswinding , compound , sand inclusion and curing etc processare finished at moving forwardmandrel core at end the productis cutted at requested length.

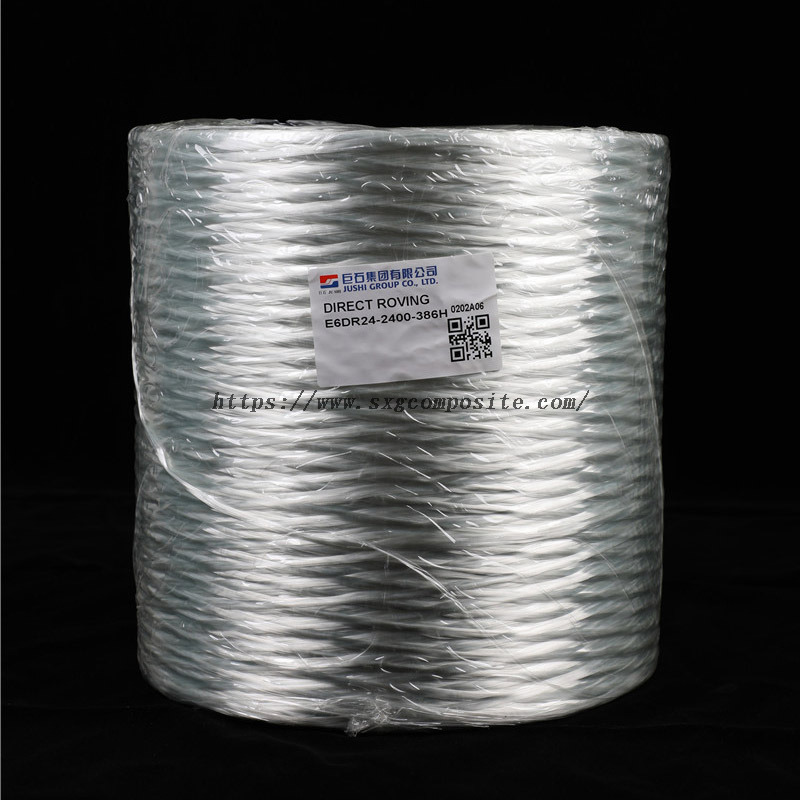

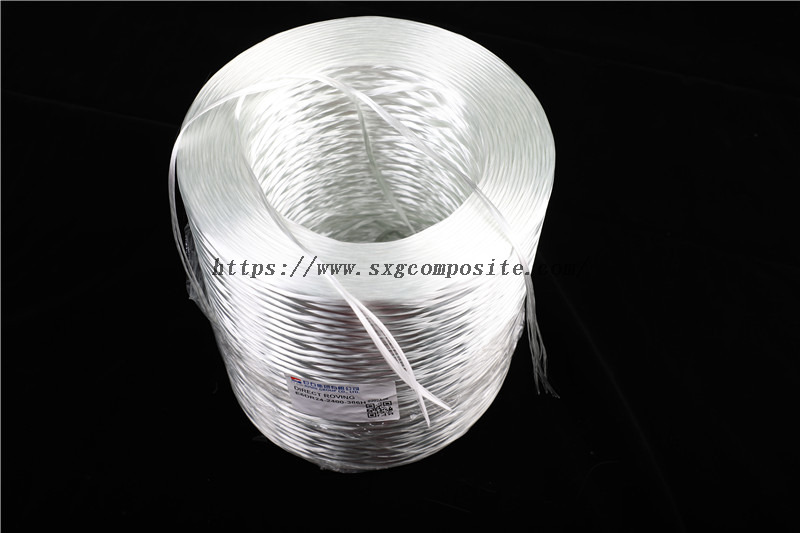

E Glass Roving for Filament Winding
The products are designed to use reinforcing silane size and provide fast wet - out , good compatible with mutipleresins allowing superior mechanical properties.
Why you choose us.
| Products Code | Filament Diameter (um ) | Linear Density ( Tex ) | Compatible Resin | Product Features and Application |
| EW150/150H | 13-35 | 300、600、12002400、4800、 9600 | UP VE | Fast and complete wet out in resinsLow catenary Lonw fuzx Excellent mechanical propertyUsed foe making fRp pipe .Chemical Storege Tank |
| EW280280H | 13-17 | 1000.1200、2400 | UP VE | Fast and complete wet-out in resinLow catenary Low fuzzExcellent mechanical propertyUsed for making High Pre$surePipe,Pressure Vessel |
| EW256/256H | 13-24 | 600、 1200、2400、4800 、9600 | EP | Fast wet-@utEccellent Abrasson ResistanceExoellent Electric PerformanceUsed for making |
| EW286 | 13-24 | 1100、1200.2000、2400 | EP | Fast and complete wet·out in resinsLow catemary Low fuzz Excellent mnechanical propertyMainly be used to make the highpressure pipe and wessel |
01.Filament Winding Process
Continuous filament winding process is that the steel bandmoves in back - and - forth circulation motion. The Fiberglasswinding , compound , sand inclusion and curing etc processare finished at moving forwardmandrel core at end the productis cutted at requested length.
E Glass Roving for Filament Winding
The products are designed to use reinforcing silane size and provide fast wet - out , good compatible with mutipleresins allowing superior mechanical properties.
Why you choose us.
